第三部分：手写实现IOC和AOP

2022-07-06

银⾏转账案例界⾯

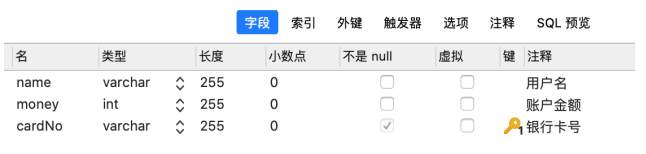

银⾏转账案例表结构

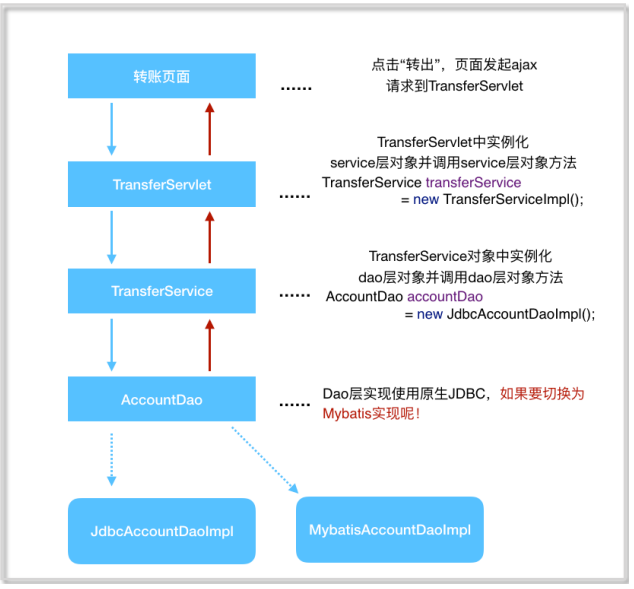

银⾏转账案例代码调⽤关系

银⾏转账案例关键代码

TransferServlet

package com.lagou.edu.servlet;
import com.lagou.edu.service.impl.TransferServiceImpl;
import com.lagou.edu.utils.JsonUtils;
import com.lagou.edu.pojo.Result;
import com.lagou.edu.service.TransferService;
import javax.servlet.ServletException;
import javax.servlet.annotation.WebServlet;
import javax.servlet.http.HttpServlet;
import javax.servlet.http.HttpServletRequest;
import javax.servlet.http.HttpServletResponse;
import java.io.IOException;
/**
* @author
*/
@WebServlet(name="transferServlet",urlPatterns = "/transferServlet")
public class TransferServlet extends HttpServlet {
    // 1. 实例化service层对象
    private TransferService transferService = new TransferServiceImpl();
    @Override
    protected void doGet(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        doPost(req,resp);
    }
    @Override
    protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
        // 设置请求体的字符编码
        req.setCharacterEncoding("UTF-8");
        String fromCardNo = req.getParameter("fromCardNo");
        String toCardNo = req.getParameter("toCardNo");
        String moneyStr = req.getParameter("money");
        int money = Integer.parseInt(moneyStr);
        Result result = new Result();
        try {
            // 2. 调⽤service层⽅法
            transferService.transfer(fromCardNo,toCardNo,money);
            result.setStatus("200");
        } catch (Exception e) {
            e.printStackTrace();
            result.setStatus("201");
            result.setMessage(e.toString());
        }
        // 响应
        resp.setContentType("application/json;charset=utf-8");
        resp.getWriter().print(JsonUtils.object2Json(result));
    }
}

TransferService接⼝及实现类

package com.lagou.edu.service;
/**
* @author
*/
public interface TransferService {
    void transfer(String fromCardNo,String toCardNo,int money) throws Exception;
}

package com.lagou.edu.service.impl;
import com.lagou.edu.dao.AccountDao;
import com.lagou.edu.dao.impl.JdbcAccountDaoImpl;
import com.lagou.edu.pojo.Account;
import com.lagou.edu.service.TransferService;
/**
* @author
*/
public class TransferServiceImpl implements TransferService {
    private AccountDao accountDao = new JdbcAccountDaoImpl();
    @Override
    public void transfer(String fromCardNo, String toCardNo, int money) throws Exception {
        Account from = accountDao.queryAccountByCardNo(fromCardNo);
        Account to = accountDao.queryAccountByCardNo(toCardNo);
        from.setMoney(from.getMoney()-money);
        to.setMoney(to.getMoney()+money);
        accountDao.updateAccountByCardNo(from);
        accountDao.updateAccountByCardNo(to);
    }
}

AccountDao层接⼝及基于Jdbc的实现类

package com.lagou.edu.dao;
import com.lagou.edu.pojo.Account;
/**
* @author
*/
public interface AccountDao {
    Account queryAccountByCardNo(String cardNo) throws Exception;
    int updateAccountByCardNo(Account account) throws Exception;
}

JdbcAccountDaoImpl（Jdbc技术实现Dao层接⼝）

package com.lagou.edu.dao.impl;
import com.lagou.edu.pojo.Account;
import com.lagou.edu.dao.AccountDao;
import com.lagou.edu.utils.DruidUtils;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
/**
 * @author
 */
public class JdbcAccountDaoImpl implements AccountDao {
    @Override
    public Account queryAccountByCardNo(String cardNo) throws Exception {
        //从连接池获取连接
        Connection con = DruidUtils.getInstance().getConnection();
        String sql = "select * from account where cardNo=?";
        PreparedStatement preparedStatement = con.prepareStatement(sql);
        preparedStatement.setString(1,cardNo);
        ResultSet resultSet = preparedStatement.executeQuery();
        Account account = new Account();
        while(resultSet.next()) {
            account.setCardNo(resultSet.getString("cardNo"));
            account.setName(resultSet.getString("name"));
            account.setMoney(resultSet.getInt("money"));
        }
        resultSet.close();
        preparedStatement.close();
        con.close();
        return account;
    }

    @Override
    public int updateAccountByCardNo(Account account) throws Exception {
        //从连接池获取连接
        Connection con = DruidUtils.getInstance().getConnection();
        String sql = "update account set money=? where cardNo=?";
        PreparedStatement preparedStatement = con.prepareStatement(sql);
        preparedStatement.setInt(1,account.getMoney());
        preparedStatement.setString(2,account.getCardNo());
        int i = preparedStatement.executeUpdate();
        preparedStatement.close();
        con.close();
        return i;
    }
}

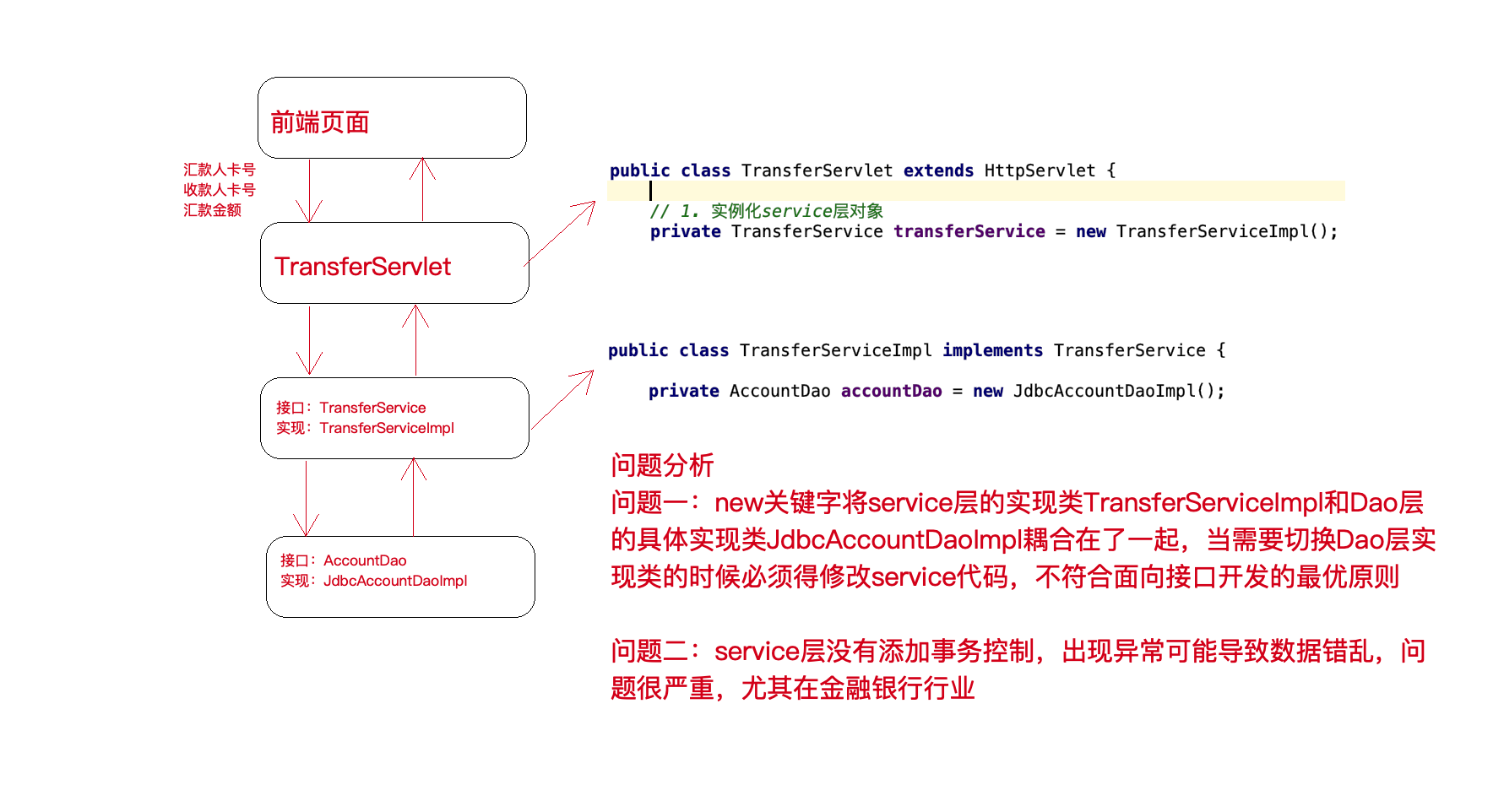

银⾏转账案例代码问题分析

问题⼀：在上述案例实现中，service 层实现类在使⽤ dao 层对象时，直接在TransferServiceImpl 中通过 AccountDao accountDao = new JdbcAccountDaoImpl() 获得了 dao层对象，然⽽⼀个 new 关键字却将 TransferServiceImpl 和 dao 层具体的⼀个实现类JdbcAccountDaoImpl 耦合在了⼀起，如果说技术架构发⽣⼀些变动，dao 层的实现要使⽤其它技术，⽐如 Mybatis，思考切换起来的成本？每⼀个 new 的地⽅都需要修改源代码，重新编译，⾯向接⼝开发的意义将⼤打折扣？
问题⼆：service 层代码没有竟然还没有进⾏事务控制？！如果转账过程中出现异常，将可能导致数据库数据错乱，后果可能会很严重，尤其在⾦融业务。

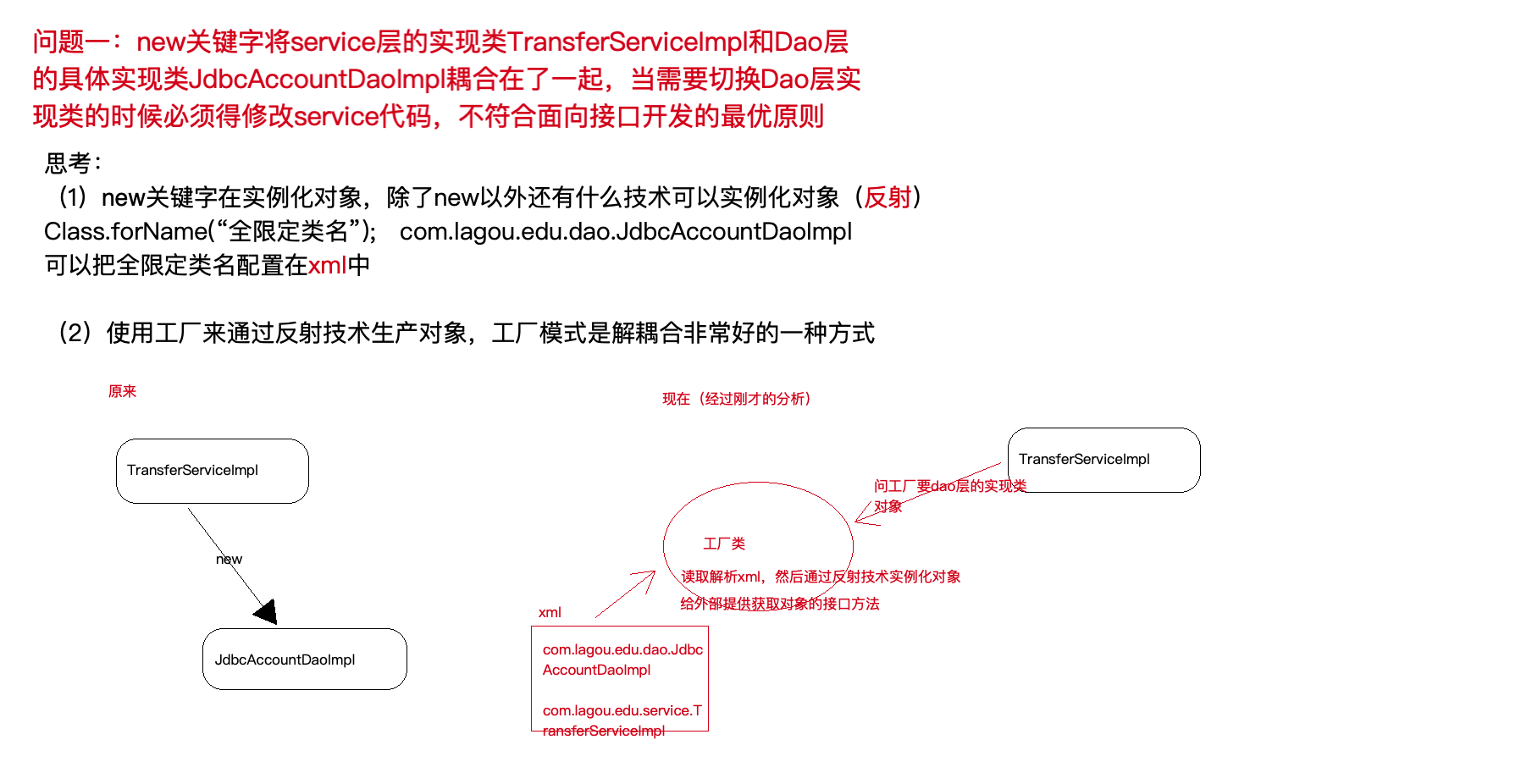

问题解决思路
针对问题⼀思考：
- 实例化对象的⽅式除了 new 之外，还有什么技术？反射 (需要把类的全限定类名配置在xml中)
考虑使⽤设计模式中的⼯⼚模式解耦合，另外项⽬中往往有很多对象需要实例化，那就在⼯⼚中使⽤反射技术实例化对象，⼯⼚模式很合适

更进⼀步，代码中能否只声明所需实例的接⼝类型，不出现 new 也不出现⼯⼚类的字眼，如下？能！声明⼀个变量并提供 set ⽅法，在反射的时候将所需要的对象注⼊进去吧

public class TransferServiceImpl implements TransferService {

    // 仅仅声明dao层接口
    private AccountDao accountDao;

    // 提供set方法供外部注入dao层实现类对象
    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }

针对问题⼆思考：
- service 层没有添加事务控制，怎么办？没有事务就添加上事务控制，⼿动控制 JDBC 的Connection 事务，但要注意将Connection和当前线程绑定（即保证⼀个线程只有⼀个Connection，这样操作才针对的是同⼀个 Connection，进⽽控制的是同⼀个事务）

案例代码改造

针对问题⼀的代码改造

beans.xml

<?xml version="1.0" encoding="UTF-8" ?>
<beans>
    <bean id="transferService" class="com.lagou.edu.service.impl.TransferServiceImpl">
        <property name="AccountDao" ref="accountDao"></property>
    </bean>
    <bean id="accountDao" class="com.lagou.edu.dao.impl.JdbcAccountDaoImpl">
    </bean>
</beans>

增加 BeanFactory.java

package com.lagou.edu.factory;
import org.dom4j.Document;
import org.dom4j.DocumentException;
import org.dom4j.Element;
import org.dom4j.io.SAXReader;
import java.io.InputStream;
import java.lang.reflect.InvocationTargetException;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
/**
 * @author
 */
public class BeanFactory {
    /**
     * ⼯⼚类的两个任务
     * 任务⼀：加载解析xml，读取xml中的bean信息，通过反射技术实例化bean对象，然后放⼊
     map待⽤
     * 任务⼆：提供接⼝⽅法根据id从map中获取bean（静态⽅法）
     */
    private static Map<String,Object> map = new HashMap<>();
    static {
        InputStream resourceAsStream = BeanFactory.class.getClassLoader().getResourceAsStream("beans.xml");
        SAXReader saxReader = new SAXReader();
        try {
            Document document = saxReader.read(resourceAsStream);
            Element rootElement = document.getRootElement();
            List<Element> list = rootElement.selectNodes("//bean");
            // 实例化bean对象
            for (int i = 0; i < list.size(); i++) {
                Element element = list.get(i);
                String id = element.attributeValue("id");
                String clazz = element.attributeValue("class");
                Class<?> aClass = Class.forName(clazz);
                Object o = aClass.newInstance();
                map.put(id,o);
            }
            // 维护bean之间的依赖关系
            List<Element> propertyNodes = rootElement.selectNodes("//property");
            for (int i = 0; i < propertyNodes.size(); i++) {
                Element element = propertyNodes.get(i);
                // 处理property元素
                String name = element.attributeValue("name");
                String ref = element.attributeValue("ref");
                String parentId = element.getParent().attributeValue("id");
                Object parentObject = map.get(parentId);
                Method[] methods = parentObject.getClass().getMethods();
                for (int j = 0; j < methods.length; j++) {
                    Method method = methods[j];
                    if(("set" + name).equalsIgnoreCase(method.getName()))
                    {
                        // bean之间的依赖关系（注⼊bean）
                        Object propertyObject = map.get(ref);
                        method.invoke(parentObject,propertyObject);
                    }
                }
                // 维护依赖关系后重新将bean放⼊map中
                map.put(parentId,parentObject);
            }
        } catch (DocumentException e) {
            e.printStackTrace();
        } catch (ClassNotFoundException e) {
            e.printStackTrace();
        } catch (IllegalAccessException e) {
            e.printStackTrace();
        } catch (InstantiationException e) {
            e.printStackTrace();
        } catch (InvocationTargetException e) {
            e.printStackTrace();
        }
    }
    public static Object getBean(String id) {
        return map.get(id);
    }
}

修改 TransferServlet

@WebServlet(name="transferServlet",urlPatterns = "/transferServlet")
public class TransferServlet extends HttpServlet {
    private TransferService transferService = (TransferService) webApplicationContext.getBean("transferService");
}

修改 TransferServiceImpl

public class TransferServiceImpl implements TransferService {

    // 仅仅声明dao层接口
    private AccountDao accountDao;

    // 提供set方法供外部注入dao层实现类对象
    public void setAccountDao(AccountDao accountDao) {
        this.accountDao = accountDao;
    }

针对问题⼆的改造

增加 ConnectionUtils

package com.lagou.edu.utils;
import java.sql.Connection;
import java.sql.SQLException;
/**
 * @author
 */
public class ConnectionUtils {
    /*private ConnectionUtils() {
    }
    private static ConnectionUtils connectionUtils = new ConnectionUtils();
    public static ConnectionUtils getInstance() {
    return connectionUtils;
    }*/
    private ThreadLocal<Connection> threadLocal = new ThreadLocal<>(); //
    存储当前线程的连接
    /**
     * 从当前线程获取连接
     */
    public Connection getCurrentThreadConn() throws SQLException {
        /**
         * 判断当前线程中是否已经绑定连接，如果没有绑定，需要从连接池获取⼀个连接绑定到
         当前线程
         */
        Connection connection = threadLocal.get();
        if(connection == null) {
            // 从连接池拿连接并绑定到线程
            connection = DruidUtils.getInstance().getConnection();
            // 绑定到当前线程
            threadLocal.set(connection);
        }
        return connection;
    }
}

增加 TransactionManager 事务管理器类

package com.lagou.edu.utils;
import java.sql.SQLException;
/**
 * @author
 */
public class TransactionManager {
    private ConnectionUtils connectionUtils;
    public void setConnectionUtils(ConnectionUtils connectionUtils) {
        this.connectionUtils = connectionUtils;
    }
    // 开启事务
    public void beginTransaction() throws SQLException {
        connectionUtils.getCurrentThreadConn().setAutoCommit(false);
    }
    // 提交事务
    public void commit() throws SQLException {
        connectionUtils.getCurrentThreadConn().commit();
    }
    // 回滚事务
    public void rollback() throws SQLException {
        connectionUtils.getCurrentThreadConn().rollback();
    }
}

增加 ProxyFactory 代理⼯⼚类

package com.lagou.edu.factory;

import com.lagou.edu.utils.TransactionManager;

import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;

/**
 * @author
 */
public class ProxyFactory {
    private TransactionManager transactionManager;

    public void setTransactionManager(TransactionManager transactionManager) {
        this.transactionManager = transactionManager;
    }

    public Object getProxy(Object target) {
        return Proxy.newProxyInstance(this.getClass().getClassLoader(), target.getClass().getInterfaces(), new InvocationHandler() {
                    @Override
                    public Object invoke(Object proxy, Method method, Object[] args) throws Throwable {
                        Object result = null;
                        try {
                            // 开启事务
                            transactionManager.beginTransaction();
                            // 调⽤原有业务逻辑
                            result = method.invoke(target, args);
                            // 提交事务
                            transactionManager.commit();
                        } catch (Exception e) {
                            e.printStackTrace();
                            // 回滚事务
                            transactionManager.rollback();
                            // 异常向上抛出,便于servlet中捕获
                            throw e.getCause();
                        }
                        return result;
                    }
                });
    }
}

修改 beans.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!--跟标签beans，⾥⾯配置⼀个⼜⼀个的bean⼦标签，每⼀个bean⼦标签都代表⼀个类的配置-->
<beans>
    <!--id标识对象，class是类的全限定类名-->
    <bean id="accountDao" class="com.lagou.edu.dao.impl.JdbcAccountDaoImpl">
        <property name="ConnectionUtils" ref="connectionUtils"/>
    </bean>
    <bean id="transferService" class="com.lagou.edu.service.impl.TransferServiceImpl">
        <!--set+ name 之后锁定到传值的set⽅法了，通过反射技术可以调⽤该⽅法传⼊对应的值-->
        <property name="AccountDao" ref="accountDao"></property>
    </bean>
    <!--配置新增的三个Bean-->
    <bean id="connectionUtils" class="com.lagou.edu.utils.ConnectionUtils"></bean>
    <!--事务管理器-->
    <bean id="transactionManager" class="com.lagou.edu.utils.TransactionManager">
        <property name="ConnectionUtils" ref="connectionUtils"/>
    </bean>
    <!--代理对象⼯⼚-->
    <bean id="proxyFactory" class="com.lagou.edu.factory.ProxyFactory">
        <property name="TransactionManager" ref="transactionManager"/>
    </bean>
</beans>

修改 JdbcAccountDaoImpl

package com.lagou.edu.dao.impl;
import com.lagou.edu.pojo.Account;
import com.lagou.edu.dao.AccountDao;
import com.lagou.edu.utils.ConnectionUtils;
import com.lagou.edu.utils.DruidUtils;
import java.sql.Connection;
import java.sql.PreparedStatement;
import java.sql.ResultSet;
/**
 * @author
 */
public class JdbcAccountDaoImpl implements AccountDao {
    private ConnectionUtils connectionUtils;
    public void setConnectionUtils(ConnectionUtils connectionUtils) {
        this.connectionUtils = connectionUtils;
    }
    @Override
    public Account queryAccountByCardNo(String cardNo) throws Exception {
        //从连接池获取连接
        // Connection con = DruidUtils.getInstance().getConnection();
        Connection con = connectionUtils.getCurrentThreadConn();
        String sql = "select * from account where cardNo=?";
        PreparedStatement preparedStatement = con.prepareStatement(sql);
        preparedStatement.setString(1,cardNo);
        ResultSet resultSet = preparedStatement.executeQuery();
        Account account = new Account();
        while(resultSet.next()) {
            account.setCardNo(resultSet.getString("cardNo"));
            account.setName(resultSet.getString("name"));
            account.setMoney(resultSet.getInt("money"));
        }
        resultSet.close();
        preparedStatement.close();
        //con.close();
        return account;
    }
    @Override
    public int updateAccountByCardNo(Account account) throws Exception {
        // 从连接池获取连接
        // 改造为：从当前线程当中获取绑定的connection连接
        //Connection con = DruidUtils.getInstance().getConnection();
        Connection con = connectionUtils.getCurrentThreadConn();
        String sql = "update account set money=? where cardNo=?";
        PreparedStatement preparedStatement = con.prepareStatement(sql);
        preparedStatement.setInt(1,account.getMoney());
        preparedStatement.setString(2,account.getCardNo());
        int i = preparedStatement.executeUpdate();
        preparedStatement.close();
        //con.close();
        return i;
    }
}
